12.1 Inch Laptop Pc Lcd Module HX121WX1-101 V3.0 40PIN 3.3V 1280x800Pixels 124PPI 300 Cd/M²

Product Categories
FOCUS VISION TECHNOLOGY LIMITED
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

12.1 Inch Laptop Pc Lcd Module HX121WX1-101 V3.0 40PIN 3.3V 1280x800Pixels 124PPI 300 Cd/M²

  • 1
  • 2

Brand Name : HYDIS

Model Number : HX121WX1-101

Certification : Rohs,CE,FCC

Place of Origin : China

MOQ : 10pcs

Price : Negotiation

Payment Terms : T/T,W, Western Union, MoneyGram

Supply Ability : 3000pcs per week

Delivery Time : 4-5 working day

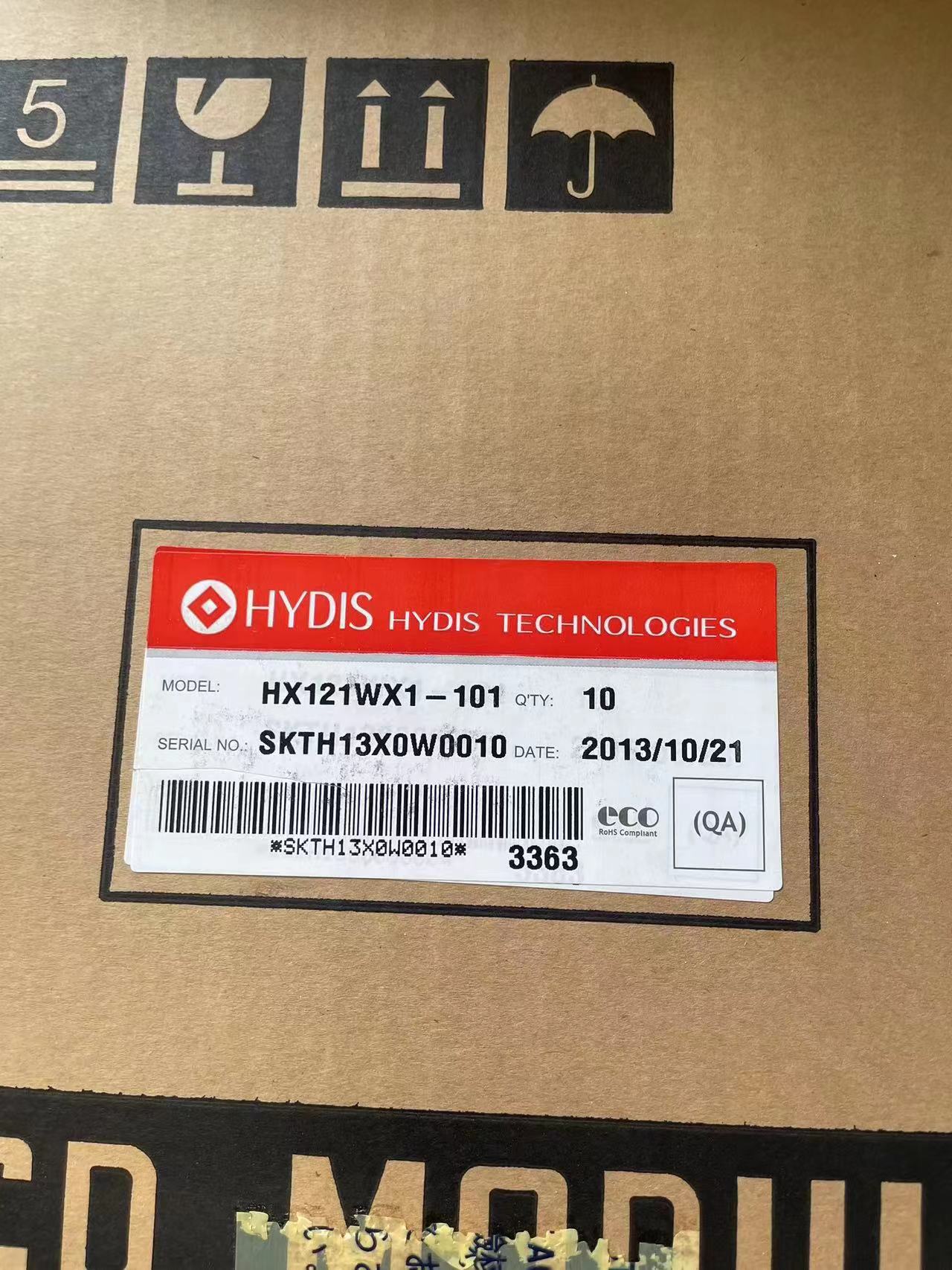

Packaging Details : Industrial packing

Quality : Brand new Original

Package : Original industrial packing

material : glass

Brightness : 300ccd/m2

Resolution : 1280*800pixels

contrast ratio : 700:1

color : 16.7M

Working life : 15k hours

connector : 40P

Touch panel : without

working voltage : 3.3V

Contact Now

HYDIS 12.1inch Laptop LCD Module HX121WX1-101 V3.0 40PIN 3.3V 1280x800Pixels 124PPI 300 cd/m²

HYDIS Technology Co., Ltd. (hereafter called HYDIS) HX121WX1-101 (Product Code: BOE08D9) is a 12.1 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: WLED Backlight, With LED Driver, Matte . Based on its features, einklcd recommend that this model be applied to Laptop etc. According to the information stored in einklcd this model mass production on Q3, 2008, Now this model is discontinued. We inputted this model's specification on Apr 1 2013 for the first time, and the latest update on Mar 16 2020. If you want to embed HX121WX1-101 LCM in your future product, einklcd strongly recommend that you should contact with HYDIS or it's distributor to learn lateast production and specification detail. The HX121WX1-101 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

Brand
HYDIS
Model P/N
HX121WX1-101 12.1 Inch Laptop Pc Lcd Module HX121WX1-101 V3.0 40PIN 3.3V 1280x800Pixels 124PPI 300 Cd/M² 1 Compatible
Diagonal Size
12.1"
Panel Type
a-Si TFT-LCD, LCM
Resolution
1280(RGB)×800, WXGA 124PPI
Pixel Format
RGB Vertical Stripe
Active Area
261.12(W)×163.2(H) mm
Bezel Opening
265.1(W)×167.2(H) mm
  • Outline Dim.
    276.8(W)×180(H)×6.8(D) mm
  • Treatment
    Antiglare, Hard coating (2H)
  • Luminance
    300 cd/m² (Typ.)
  • Contrast Ratio
    700:1 (Typ.) (TM)
  • View Direction
    Symmetry
  • Response Time
    30 (Typ.)(Tr+Td)
  • Viewing Angle
    90/90/90/90 (Typ.)(CR≥10)
  • Operating Mode
    AFFS, Normally Black, Transmissive
  • Support Color
    262K 42% NTSC
  • Light Source
    WLED [12S4P] , 10K hours , With LED Driver
  • Form Style
    -
  • Designed For
    12.1 Inch Laptop Pc Lcd Module HX121WX1-101 V3.0 40PIN 3.3V 1280x800Pixels 124PPI 300 Cd/M²
  • Frame Rate
    60Hz
  • Touch Panel
    Without
  • Interface Type
  • LVDS (1 ch, 6-bit) , 40 pins Connector
  • Power Supply
  • 3.3V (Typ.)
  • Environment
  • Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C

12.1 Inch Laptop Pc Lcd Module HX121WX1-101 V3.0 40PIN 3.3V 1280x800Pixels 124PPI 300 Cd/M²
