BOE 18.5 Inch LCD Display Panel with 1366x768 Pixels and 30 Pin Connector TFT-LCD Module

Brand Name : BOE

Model Number : MV185WHB-N20

Certification : CE,FCC,ROSH,UL,REACH

Place of Origin : China

MOQ : 10pcs

Price : negotiation

Payment Terms : Western Union,MoneyGram,T/T

Supply Ability : 20000pcs per week

Delivery Time : 3-4 days

Packaging Details : industrial package

material : glass

contrast ratio : 1000:1

connector : 30pin

resolution : 1366*768pixles

working life : 30k hours

display colors : 16.7M

display area : 409.8(W)×230.4(H) mm

inout voltage : 5.0V (Typ.)

Contact Now

MV185WHB-N20 84PPI 30 Pin BOE 18.5 Inch LCD Display Panel

BOE 18.5-inch LCD Panel MV185WHB-N20 with 1366*768 resolution, 84PPI density, and 30-pin interface for desktop monitor applications. Brand new condition.

Technical Specifications

Panel Brand	BOE	Panel Model	MV185WHB-N20
Panel Size	18.5"	Panel Type	a-Si TFT-LCD, CELL
Resolution	1366(RGB)*768, WXGA, 84PPI	Pixel Format	RGB Vertical Stripe
Display Area	409.8(W)*230.4(H) mm	Outline Size	422.2(W)244.1(H)1.32(D) mm
Surface	Antiglare (Haze 25%), Hard coating (3H)	Brightness	0 cd/m²
Contrast Ratio	1000:1 (Typ.) (TM)	Viewing Angle	89/89/89/89 (Typ.)(CR≥10)
Display Mode	HADS, Normally Black, Transmissive	Best View	Symmetry
Response Time	14ms (Typ.)(G to G)	Glass Depth	0.50+0.50 mm
Transmissivity	5.2% (Typ.)(with Polarizer)	Display Colors	16.7M 72% NTSC
Lamp Type	No B/L	Frequency	60Hz
Touch Screen	Without	Panel Weight	295.6g (Typ.)

Interface & Electrical Specifications

Signal Interface: LVDS (1 ch, 8-bit), 30 pins Connector
Input Voltage: 5.0V (Typ.)

Environmental Conditions

Operating Temperature: 0 ~ 50°C
Storage Temperature: -20 ~ 60°C

Product Overview

The MV185WHB-N20 is an 18.5-inch diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd. This panel features no integrated backlight and no touch screen capability. With its wide operating temperature range and high-quality display characteristics, this model is recommended for desktop monitor applications. Initial specifications were recorded on May 10, 2017, with the latest update on April 22, 2019.

Note: For integration of the MV185WHB-N20 CELL into your products, we strongly recommend contacting BOE or their authorized agents for the latest production status and detailed specifications. The production status information provided is for reference only and should not be used as the sole basis for decision-making.

BOE 18.5 Inch LCD Display Panel with 1366x768 Pixels and 30 Pin Connector TFT-LCD Module

Product Tags:

18.5" Laptop Lcd Screen

1366*768 Pixels Tft Lcd Module

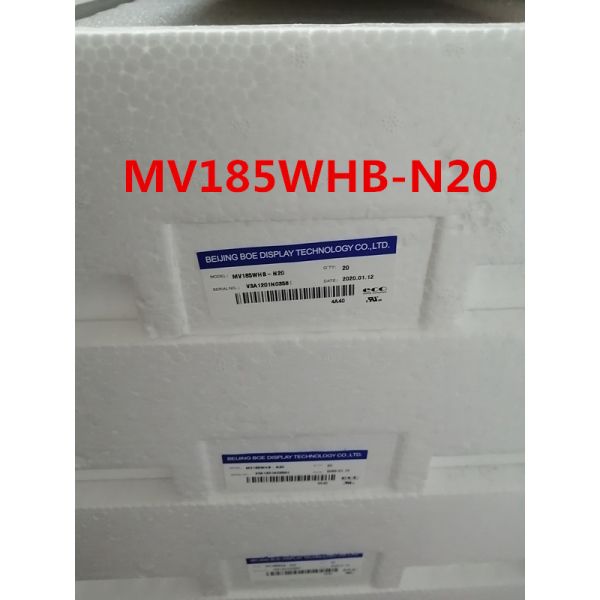

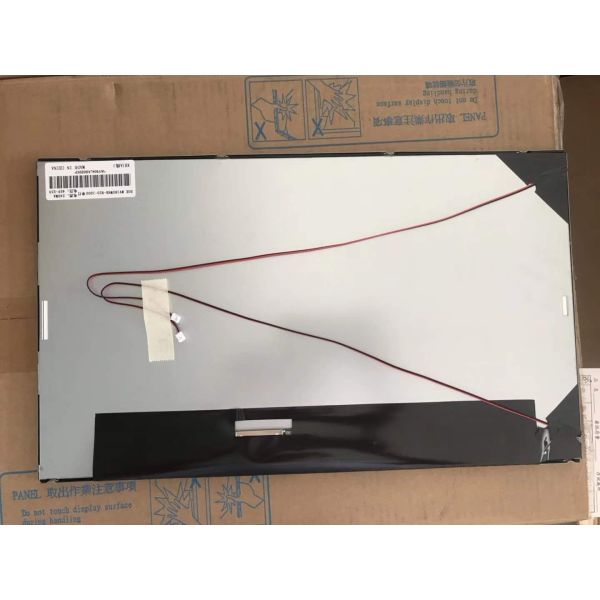

BOE 18.5 Inch LCD Display Panel with 1366x768 Pixels and 30 Pin Connector TFT-LCD Module Images
